Subgrid Marching Tetrahedra

Motivation

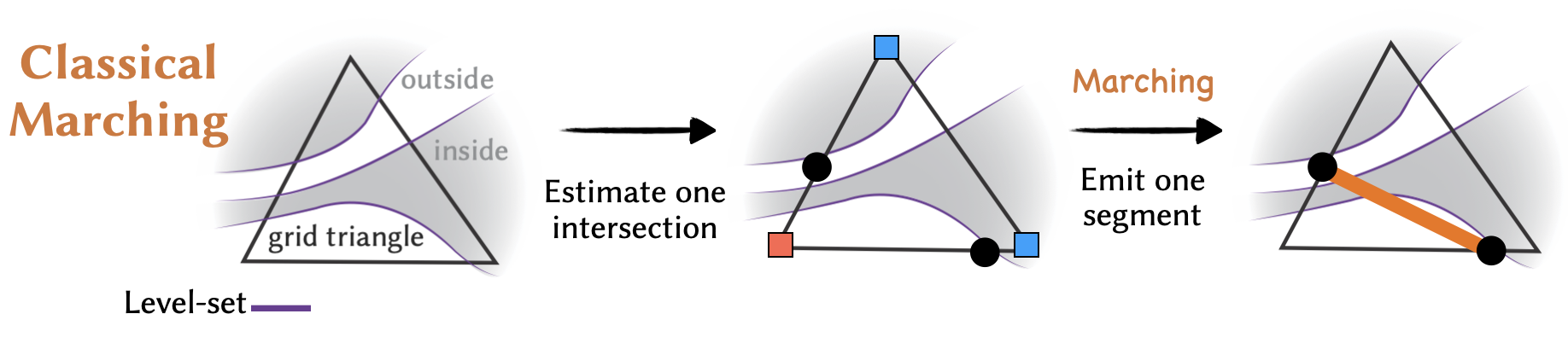

We generalize the well-known marching tetrahedra algorithm to produce meshes with details finer than the grid resolution. The classical marching cubes/tets algorithm takes scalar function values at the vertices of a tetrahedral grid, and produces a triangle mesh that approximates the zero level set of that function. The big limiting assumption is that each edge of the tet/cube can intersect the output surface at most once, and each tet/cube can produce at most one patch (single quad/triangle). So any features smaller than a single tet/cube are lost.

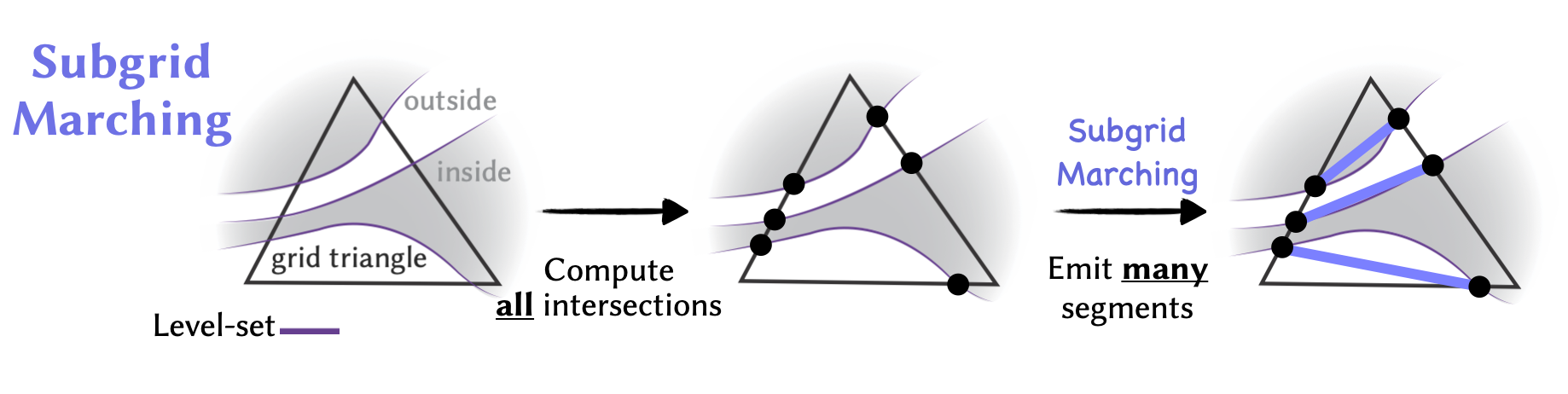

The usual solution in classical marching is to refine the grid, but the thinner a feature is, the more refinement we need. Our method, unlike the classical approach, takes an arbitrary number of intersections on each edge, and builds a mesh out of them, no matter how close the intersections are to each other. So capturing thin features, no matter how thin they are, is now possible without refining the grid.

How does it work?

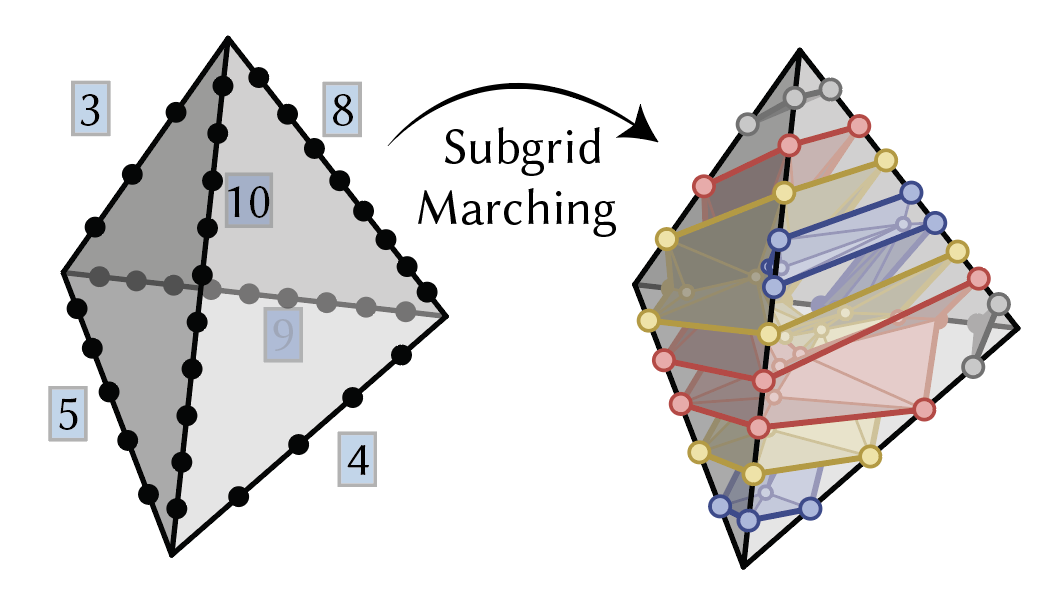

Given just a bunch of intersection points on the edges of a tetrahedron, it's not immediately clear how to connect them into a valid mesh. We use a prior for connectivity, which we call the normality prior. This is inspired by normal surface theory, which encodes a surface's topology via integer intersection counts along each grid edge. The 2D version of this problem has already found its way to a lot of cool problems in graphics — see Mark Gillespie's and Nick Sharp's theses and papers on intrinsic triangulations.

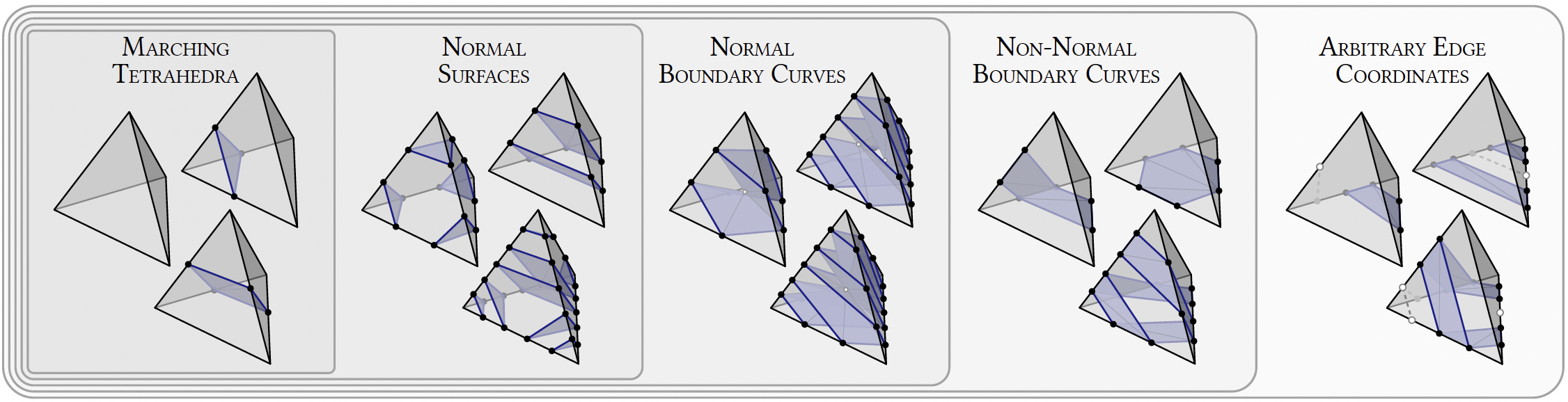

Our 3D construction uses the 2D approach as a foundation. We also go beyond normal surfaces and identify all classes of surfaces enumerated by the intersection counts. We provide a construction for each class, and provide a manifold and intersection-free guarantee for our output. Play around with all the different types in our interactive demo!

Benefits of Subgrid Marching

Subgrid marching enjoys all the same benefits of classical marching: the construction is local, efficient, and embarrassingly parallel, while guaranteeing global manifold and intersection-free properties.

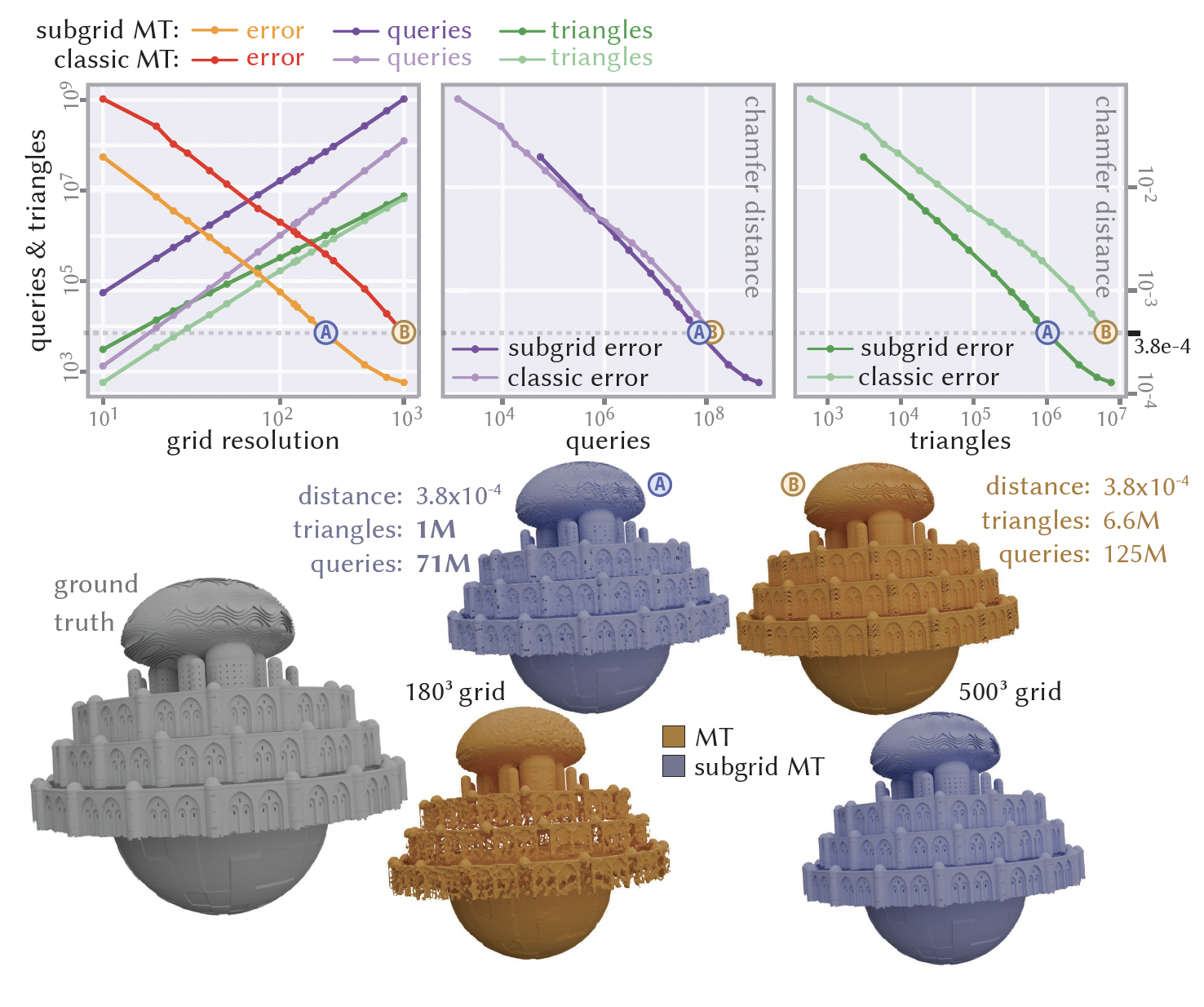

Beyond recovering thin features, our method also provides a natural simplification of the output mesh. For almost any example, it gets better reconstruction quality than classical marching at a lower resolution, while producing far fewer output triangles.

Future directions

In the paper, we only work with triangle soups and analytical SDFs, but our method can be applied to any input, as long as you can do ray-intersection queries on that input. If there is some representation out there that allows you to do ray-intersection queries, try subgrid marching on it! Turning a triangle soup into a manifold mesh is a good example of this. The usual approach is to extract an SDF or generalized winding number and convert that into a mesh using classical marching. But that is not necessary anymore -- ray-intersection queries are much easier and cheaper and subgrid marching can work with them.

Subgrid marching, just like classical marching, makes the assumption that the surface is locally flat inside each tetrahedron; this is what we call the normality prior. And just like classical marching, this assumption becomes true as the grid is refined. We simply get to the correct topology faster — at a lower resolution. It could be possible to use other priors, or use more information about the input, to get the correct topology at an even lower resolution.

@article{Baktash:2026:SMT,
  author    = {Baktash, Hossein and Gillespie, Mark and Crane, Keenan},
  title     = {Subgrid Marching Tetrahedra},
  journal   = {ACM Trans. Graph.},
  issue_date = {July 2026},
  volume    = {45},
  number    = {4},
  articleno = {57},
  numpages  = {20},
  year      = {2026},
  publisher = {Association for Computing Machinery},
  address   = {New York, NY, USA},
  doi       = {10.1145/3811358},
  url       = {https://doi.org/10.1145/3811358}
}
